How soft close works
The user moves the door along the track. Near the endpoint, a tab or actuator engages the soft-close mechanism. The mechanism then controls the final part of the movement. The exact parts, engagement distance and adjustment method depend on the system.
Soft close is different from an automatic operator. It does not normally move a door through its entire travel on its own, and it does not correct a track that is out of level or a panel that rubs.
Four benefits, with realistic expectations
| Benefit | What changes | What it does not establish |
|---|---|---|
| 1. A gentler final stop | The mechanism controls the panel near the endpoint. | The door should still be operated as instructed, not shoved. |
| 2. Less impact noise | A controlled finish can reduce a hard end-of-travel bump. | It does not soundproof the room or silence every roller. |
| 3. Control at both ends | A suitable two-mechanism kit can address opening and closing. | The parts and layout must support both directions. |
| 4. An upgrade to compatible hardware | Some systems allow soft close to be added to an existing installation. | Not every rail, hanger or panel accepts the same kit. |
Keep hands clear of closing edges, wheels and moving parts. A slower final movement does not remove pinch points, and the mechanism should not be treated as a safety barrier.
Check the exact Rustica system before ordering

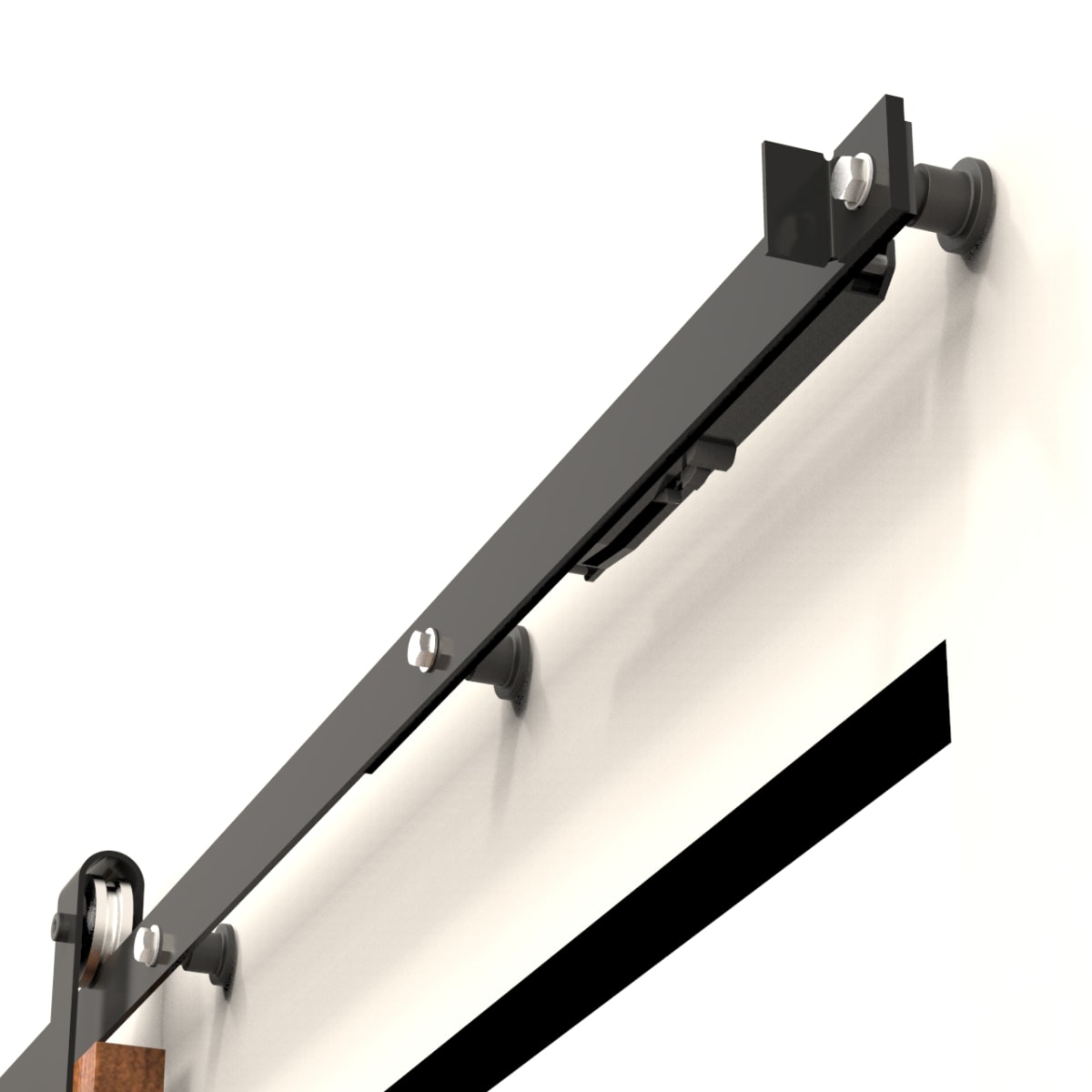

The current Closure soft-stop system specifications list a minimum door weight of 100 pounds and a maximum of 300 pounds. The kit is for Rustica’s Standard Flat Track Barn Door Hardware and includes two mechanisms, one for each end of the track.
| Item | What the product specifies |
|---|---|
| Track family | Rustica Standard Flat Track Barn Door Hardware. |
| Door weight | 100–300 pounds; confirm the finished panel weight. |
| Excluded systems | No Show, J Track, Low Clearance, Box Track and Modern Box Track. |
| Actuator choice | Use the tab and mounting arrangement appropriate to the door and kit. |
| Final check | Confirm the current product instructions for the complete order. |
These limits belong to the named Closure product. They should not be carried over to another soft-close mechanism or ignored because the rail looks similar. A door that is too light can be incompatible just as a door that is too heavy can be.
If you already have another rail type, ask about a system made for it. Do not assume the Modern Box Track accepts this Closure kit.
What to send when planning a retrofit
- The track and hanger model, including the order number if available.
- The actual finished door weight, thickness and material.
- Track length and the intended fully open and fully closed positions.
- Photos of the back of the rail, its supports and the top of the door.
- Any existing latch, floor guide, pull or other hardware that affects travel.
The finished weight includes attached glass, mirrors and hardware. Do not substitute a guess based on door width or wood species. Confirm that the soft-close device can engage before the door reaches its required stop.
Use the instructions for the selected kit
Start with Rustica’s door hardware installation instructions and videos and the instructions supplied with the order. Mounting a mechanism behind a flat rail is a different job from fitting a device designed for another track profile.
The published Soft Close System instruction sheet shows the mounting bracket and tab arrangement for that version. Confirm that it matches the parts supplied with your order before starting.
Reference: Rustica Soft Close System installation instructions.
The installer should follow the specified support and installation sequence before loosening any track or mounting hardware. Use the stated mounting positions and tab clearances rather than placing the mechanism at the center of every track. After adjustment, test the allowed travel in both directions.
Keep the required barn door hardware parts in place. A damper does not replace structural fasteners, stops, anti-jump components or the floor guide.
If the door will not catch or finish closing
| Symptom | Useful check |
|---|---|
| The tab misses the catch | Check tab position, height and the model-specific adjustment. |
| The panel stops before the intended endpoint | Look for binding, an obstruction or incorrect engagement position. |
| The finish is still harsh | Confirm compatibility, weight range and mechanism setup. |
| It works in only one direction | Check which mechanisms are included and how each end is configured. |
| The action changes over time | Inspect attachments, alignment and components using the care instructions. |
Do not force a reluctant mechanism or add a lubricant unless the instructions call for it. Resolve alignment and compatibility problems first; replace damaged parts with the correct components.
Compare barn door hardware systems if a broader change is needed. The right soft-close choice belongs to the whole assembly, not just the accessory name.
