Can picture windows open?
No. A picture window is fixed, so it does not provide an opening for ventilation or passage. If the room needs fresh air through that wall, plan an operable window beside it or elsewhere. Any required emergency escape opening needs a suitable opening unit and installation.
Andersen describes picture windows as fixed units and shows them combined with operable windows. The combination can preserve a broad view while providing ventilation through a nearby window that opens.
Reference: Andersen explanation of picture windows and combinations.

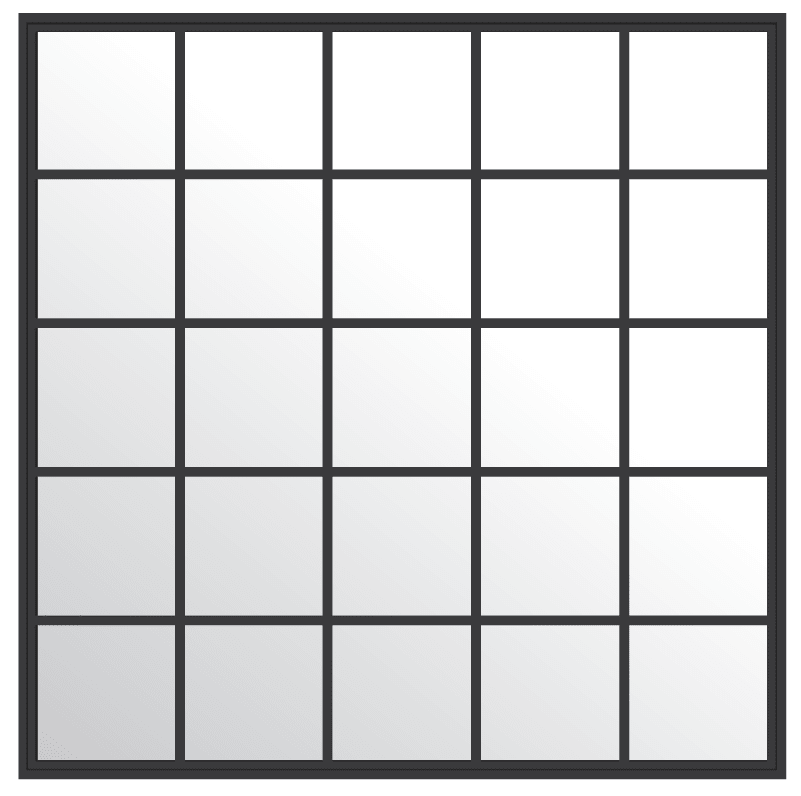

Compare a clear view with a divided pattern
A quiet frame lets the landscape lead. A grid can echo the proportions of nearby doors or older windows. The window grille design guide explains that choice, while the window collection is the place to compare current products.
Picture window sizes: start with width × height
There is no single standard size chart that applies to all picture windows. Manufacturers offer different size ranges and combinations based on the frame, glass, shape and performance requirements. Confirm whether a dimension refers to a nominal name, actual frame size, rough opening or visible glass.
| Width × height example | Proportion | A useful planning question |
|---|---|---|
| 24 × 36 in. | Portrait rectangle. | Does a taller view fit between nearby walls or openings? |
| 48 × 36 in. | Landscape rectangle. | Does the width frame the view from normal seating? |
| 72 × 48 in. | Larger landscape rectangle. | Can the wall, glass specification and installation support this size? |
These examples show proportions, not a list of stocked Rustica sizes or guaranteed manufacturing limits. A 48 × 36 in. frame does not provide 48 × 36 in. of visible glass, because the frame and glazing details occupy part of the area.
For the general terms, see standard window sizes and naming conventions. For a replacement opening, use how to measure a window and have the supplier confirm the final dimensions.
Fixed, picture and direct-set: what changes?
| Term | What it tells you | What it does not guarantee |
|---|---|---|
| Fixed | The window does not open. | A particular frame width or glass area. |
| Picture | A fixed window used for light and a view. | A large size or a grille-free design. |
| Direct-set or direct-glazed | The glass is set into the frame without a separate sash in that design. | The same profile or dimensions across manufacturers. |
| Fixed sash | A non-operating sash can match nearby operating windows. | That it can later be converted to open. |
A picture window is a type of fixed window. Some product lines distinguish a direct-set picture unit from a fixed-sash unit, while others use the names differently. Compare the section drawings and visible frame dimensions instead of treating “fixed” and “picture” as universal opposites.
Picture window vs. casement window
| Consideration | Picture window | Casement window |
|---|---|---|
| Movement | Does not open. | Uses a side-hinged sash; operation varies by model. |
| Ventilation | Requires another opening or ventilation provision. | Can provide ventilation when open. |
| Exterior clearance | No sash projects when opened. | Check the area swept by an outward-opening sash. |
| Screens | An insect screen is generally unnecessary on fixed glass. | Screen arrangement depends on the operating system. |
| View | Can provide broad fixed glazing with or without a grid. | Frame, sash and hardware affect the visible glass. |
| Performance | Compare the tested complete unit. | Compare the tested complete unit. |
Use the casement window guide to plan that operating sash. A picture window beside a casement is one option; a fixed window above an operable unit is another. Joined assemblies need an approved connection and support detail. The window types guide compares other opening styles and layouts.
Compare energy performance using the actual ratings
A fixed unit has no opening sash seal to operate, but it still has glass, frame and installation joints. It is not automatically airtight, leakproof or more efficient than every casement. Glass area, frame design, coatings and installation affect performance.
Ask for the complete unit’s U-factor and solar heat gain coefficient, along with any other performance the project requires. NFRC certification provides a common basis for comparing energy performance. Match the glass to the climate, orientation and shading plan instead of assuming a south-facing window should always use the same coating.
Reference: NFRC residential window performance certification.
The low-e glass guide explains coatings, and the window glazing guide explains related glass terms. Neither the number of panes nor the word “low-e” replaces the actual unit rating.
Plan the view from where people sit
Stand and sit in the places where the window will be seen most often. Mark the proposed edges on the wall and check what they frame. A wider window may capture more of a neighboring building, while a narrower, better-placed one may frame the tree or garden you wanted.
Include privacy after dark, glare on screens, furniture against the wall and access for cleaning both sides. Larger glazing can be heavier and harder to handle, so discuss delivery and installation access early. Removing the wall between existing windows also requires a structural review.
For a larger composition, explore window wall planning. Choose the assembly as a whole rather than treating several individual units as interchangeable pieces.
Questions worth asking before you choose
Do picture windows need screens?
Fixed glass generally does not need an insect screen because it does not open. Neighboring operable units may have screens. Solar shades, protective guards and insect screens serve different purposes.
Can I replace a picture window with one that opens?
Possibly, but the new operation must fit the opening and meet the project’s requirements. Size limits, frame dimensions, surrounding clearance and any required escape opening all need review. It is usually a replacement-unit decision, not an on-site conversion of the fixed window.
Are picture windows only for living rooms?
No. A fixed window can suit many locations where light or a view is useful and opening function is provided elsewhere when needed. Check privacy, safety glazing, ventilation and cleaning access for the specific room.
