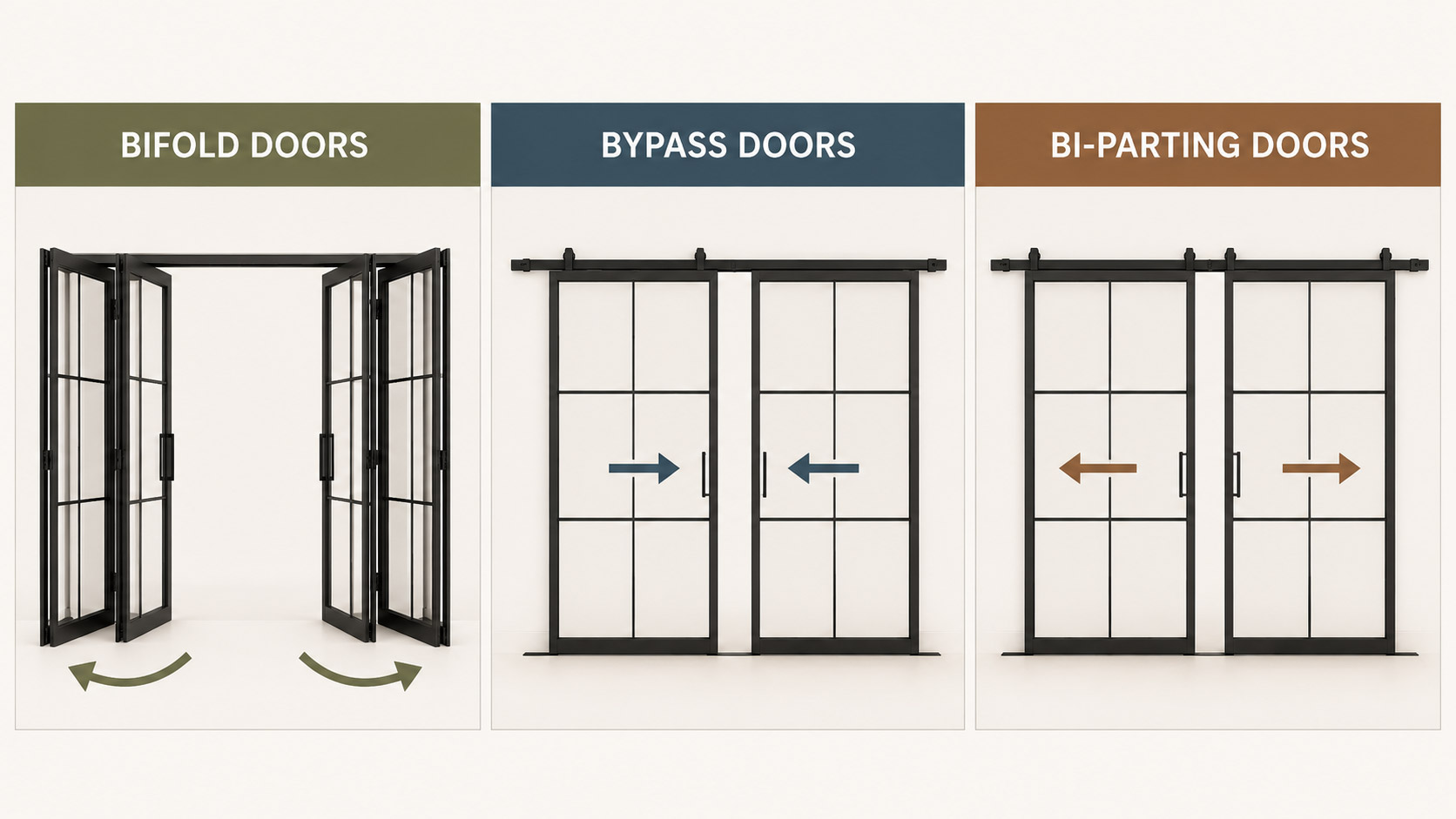

See how each system opens
| System | Where the panels go | Main planning question |
|---|---|---|
| Bifold | Connected panels fold into a stack. | Will the folded stack and its projection clear the room and stored items? |
| Bypass | Panels overlap or stack on parallel paths. | How much of the opening remains accessible behind the stack? |
| Bi-parting | Two panels slide outward from the center. | Is there enough clear wall space on both sides? |

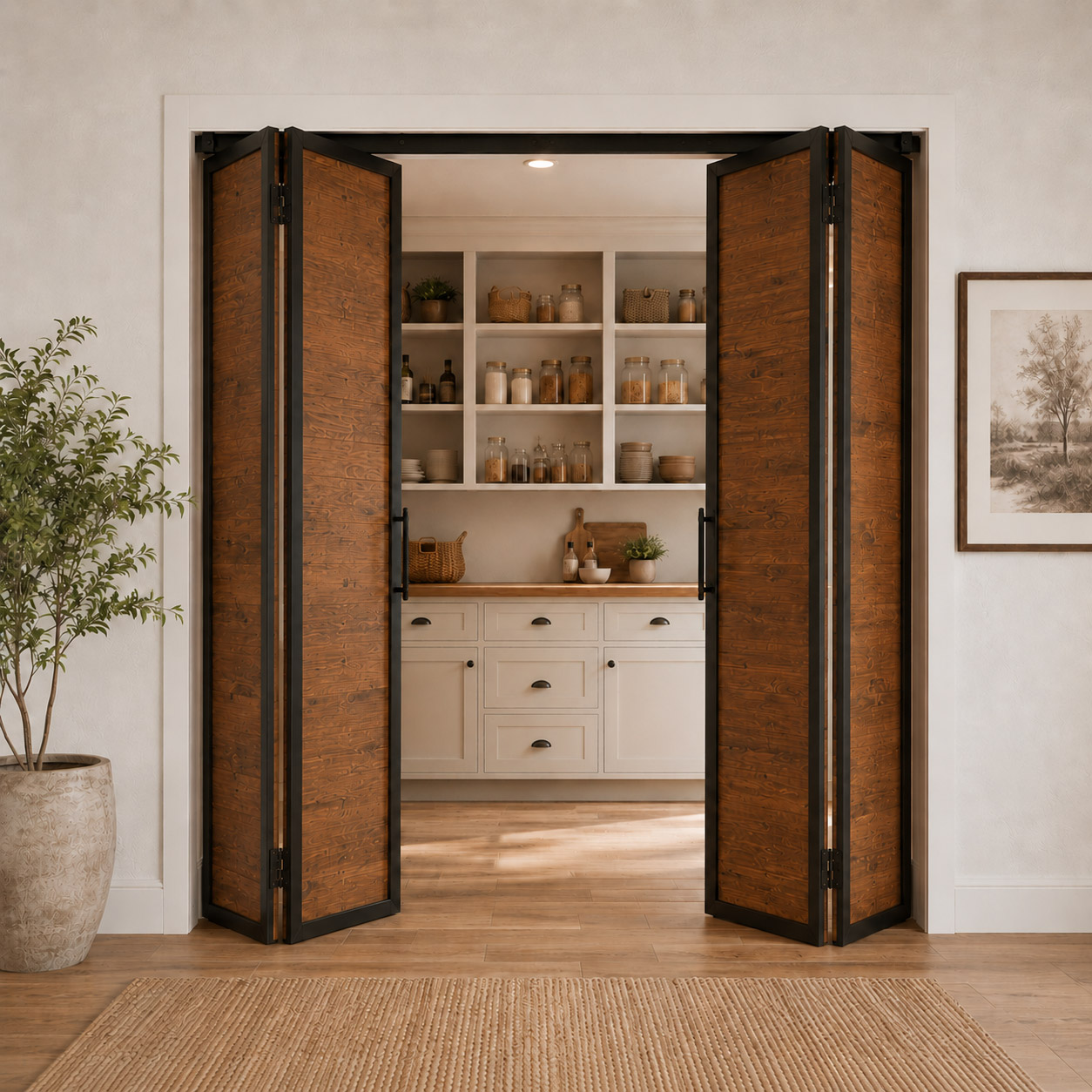

Bifold doors: plan for the folded stack
A bifold system divides a door into linked panels that fold as the opening clears. The stack occupies space, and some systems project toward the room. That can work well where there is little wall space beside an opening, but nearby furniture still matters.
Compare bifolding barn doors for current configurations. Check the drawings for pivot locations, track position, handle placement and the folded depth. Do not assume a conventional closet bifold kit and an exposed-track barn bifold kit share the same preparation.

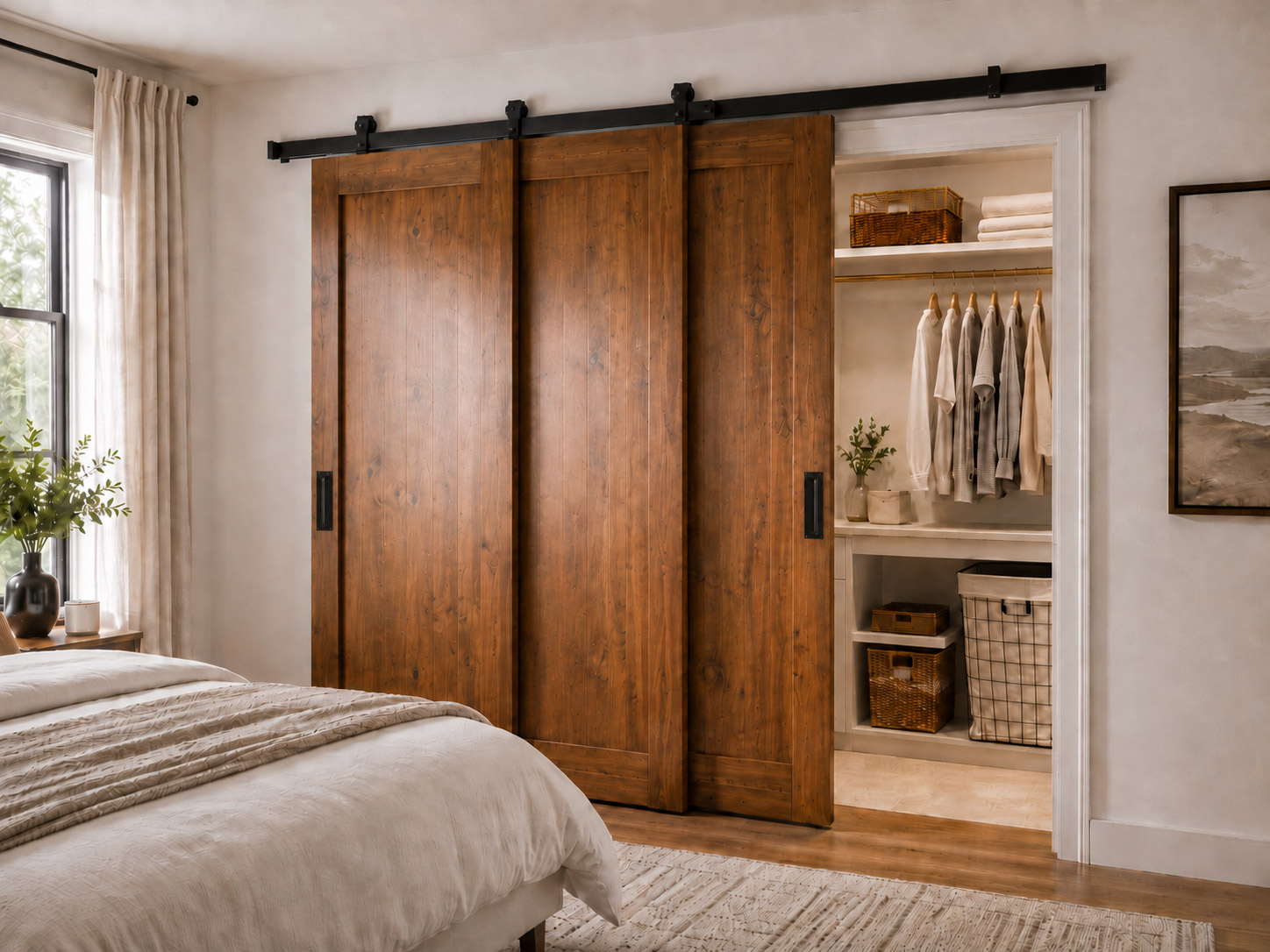

Bypass doors: compare access with the panels stacked
Bypass panels travel in separate planes so one can pass in front of another. This can keep much of the panel travel within the opening width. The tradeoff is that stacked panels may continue to cover part of the opening.
A simple two-panel closet often gives access to one side at a time. That is a planning example, not a rule for every system: panel count, track extension and parking space change the result. Check whether a drawer can extend fully behind either panel.
Compare bypass barn doors and their matched bypass barn door hardware. Include the space between panels, trim and handles when checking the overall projection.

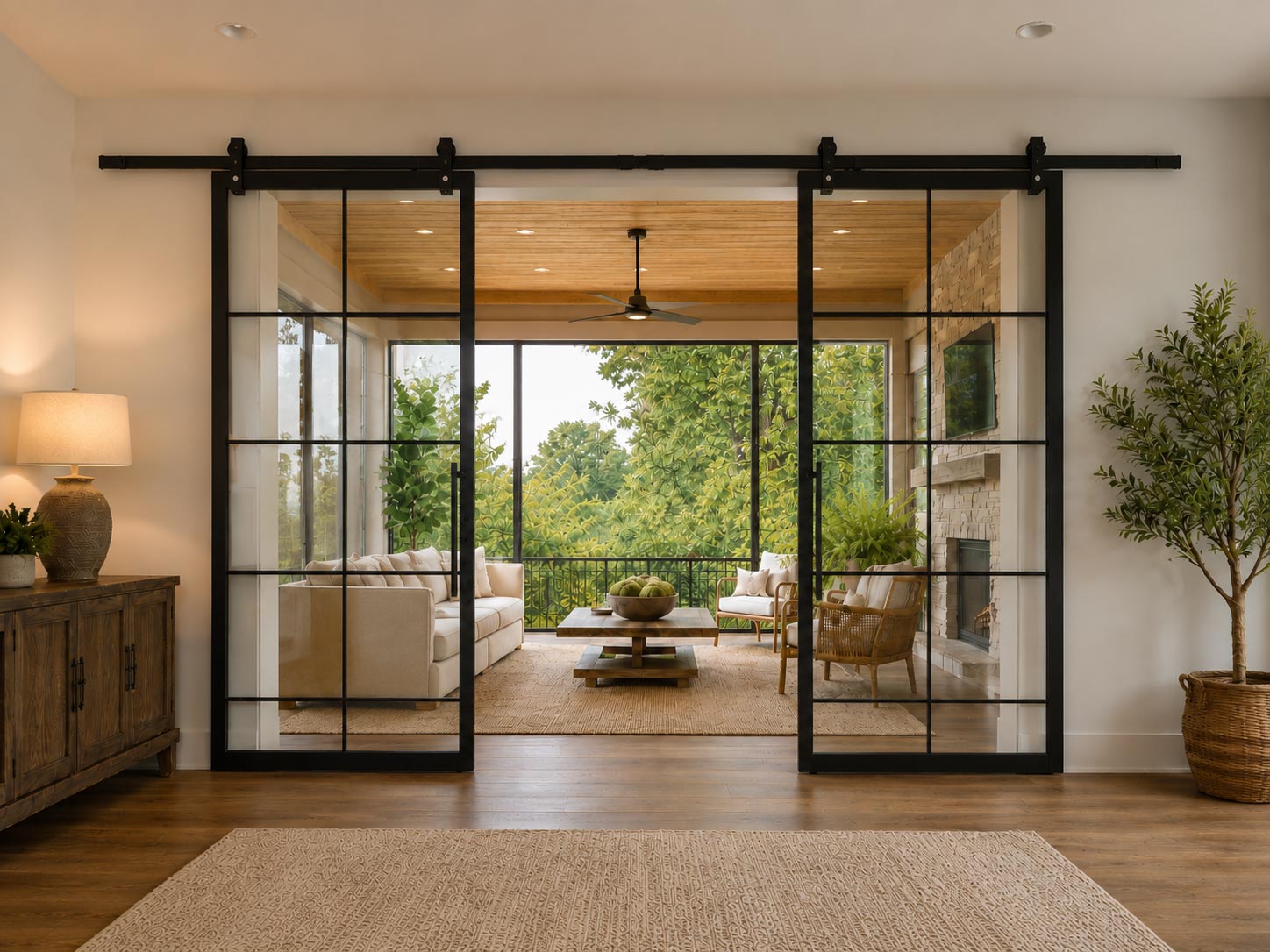

Bi-parting doors: leave room on both sides
A bi-parting pair meets at the center when closed. To open it, one panel moves left and the other moves right. When the system provides enough travel, both panels can park outside the passage.
The double barn door collection shows this layout. Measure each wall separately; a light switch, corner, radiator or cabinet on just one side can prevent the intended travel. Confirm the meeting detail and whether the selected hardware operates the panels independently.
A room-by-room decision checklist
| Opening | Start by checking |
|---|---|
| Closet with drawers | Drawer depth and access with every possible panel position. |
| Laundry enclosure | Appliance doors, service access and any required ventilation. |
| Wide room divider | Usable passage width, furniture and privacy expectations. |
| Hallway opening | Panel projection, nearby doors and the clear walking route. |
| Home office | Sound leakage, latching and whether a hinged assembly would better suit privacy. |
Measure the finished opening and record the available wall space, headroom and trim depth. Draw the doors in the fully open position before choosing a system. None of these labels alone establishes an accessible clear opening or a sound rating.
Do not confuse a pair with a movement type
“Double doors” means two leaves; it does not specify whether they swing, slide or fold. French doors usually describe a glazed style. An astragal is a meeting-edge component, not a movement system. For swinging pairs, see the double-door hardware options guide.
Use the selected installation instructions to turn the layout into an order. The barn door measuring guide is a useful starting point for recording the opening.
