Look inside the frame

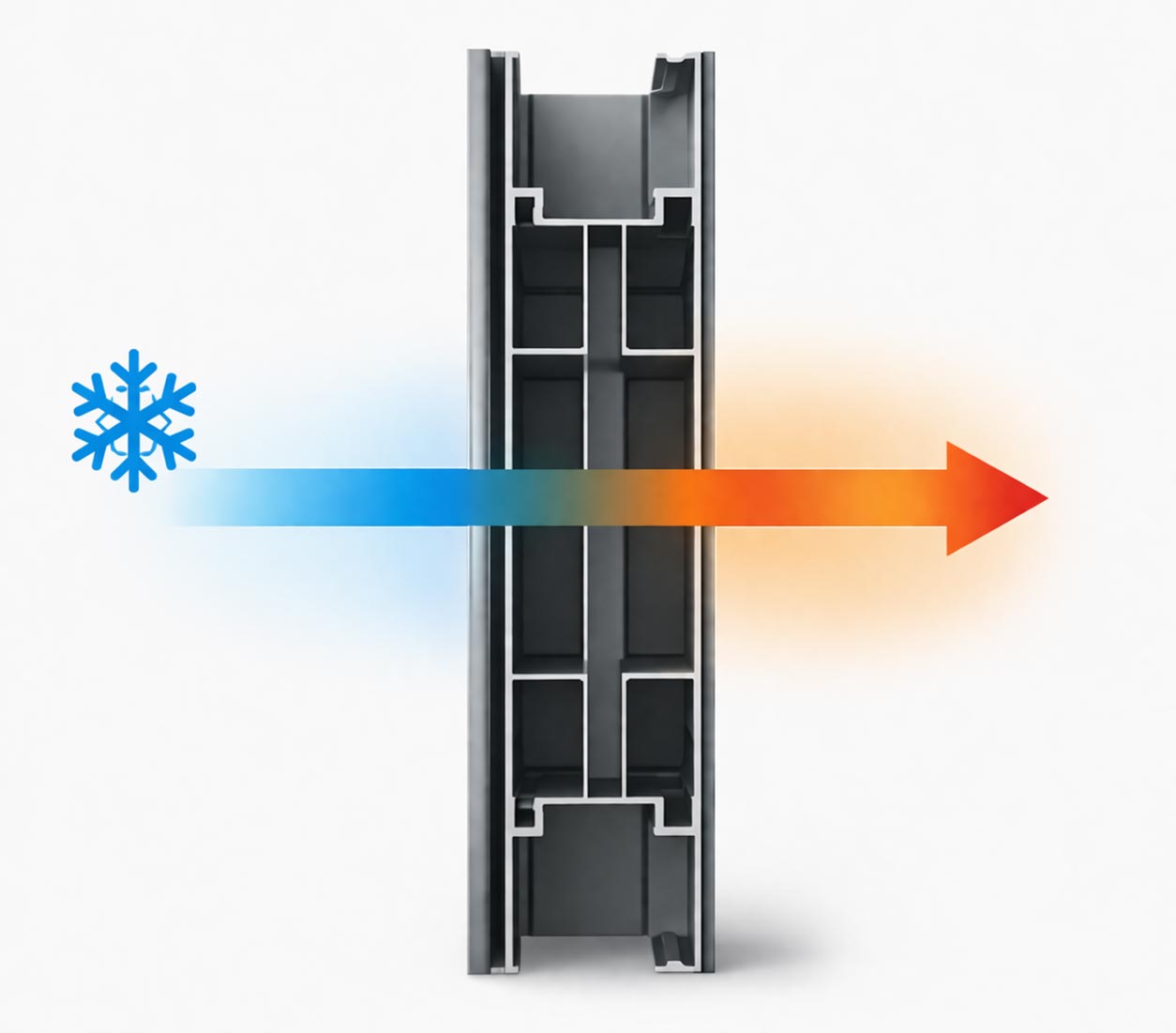

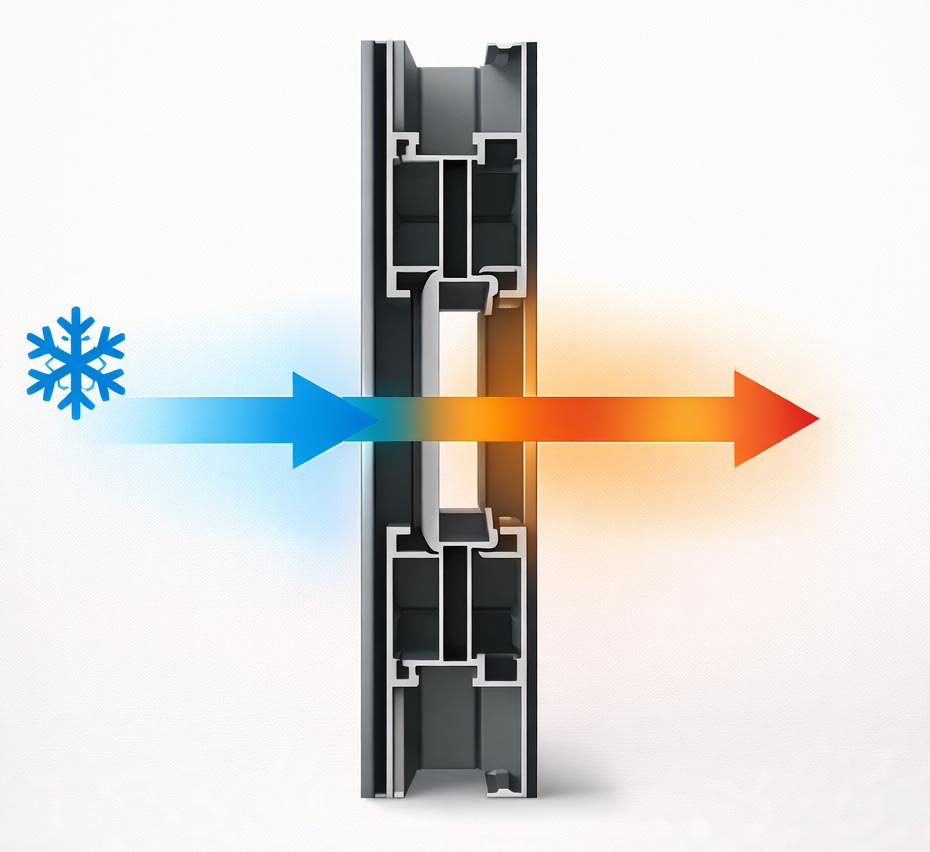

Metal conducts heat readily. When a frame connects indoor and outdoor surfaces, heat can move through that connection. An insulating connector changes the path. It does not make the two sides thermally independent, and it does not turn every door with a break into the same performing product.
Reference: U.S. Department of Energy guidance on thermal breaks and energy-efficient doors.
For the basic definition and terminology, see what a thermally broken door is. This guide focuses on comparing two door proposals.

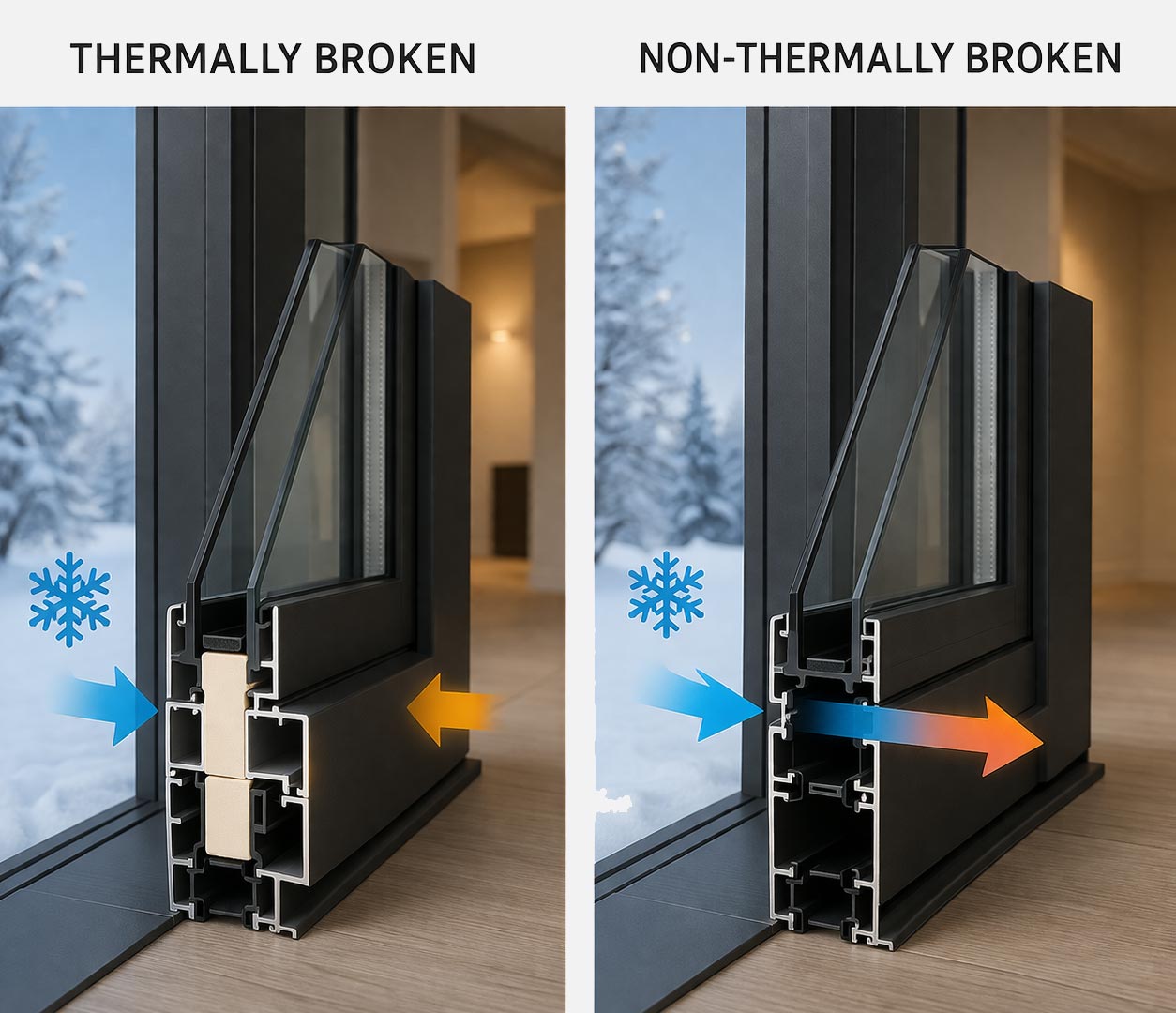

Compare the complete assemblies
| Question | Thermally broken frame | Continuous metal frame |
|---|---|---|
| Metal connection | Includes a less-conductive separation in the designed path. | Has a continuous conductive path between connected sections. |
| Indoor surface temperature | The break can help moderate the interior surface temperature. | The metal path can make interior surfaces more sensitive to outdoor conditions. |
| Condensation | Risk still depends on surface temperature and indoor moisture. | A colder interior surface can be more vulnerable under the same conditions. |
| Whole-door performance | Must be supported by the exact assembly’s ratings. | Must also be evaluated using the exact assembly’s ratings. |
| Project fit | Often relevant at the boundary of conditioned space. | May be appropriate for interior or other suitable uses after project review. |
Request U-factor data for the actual door

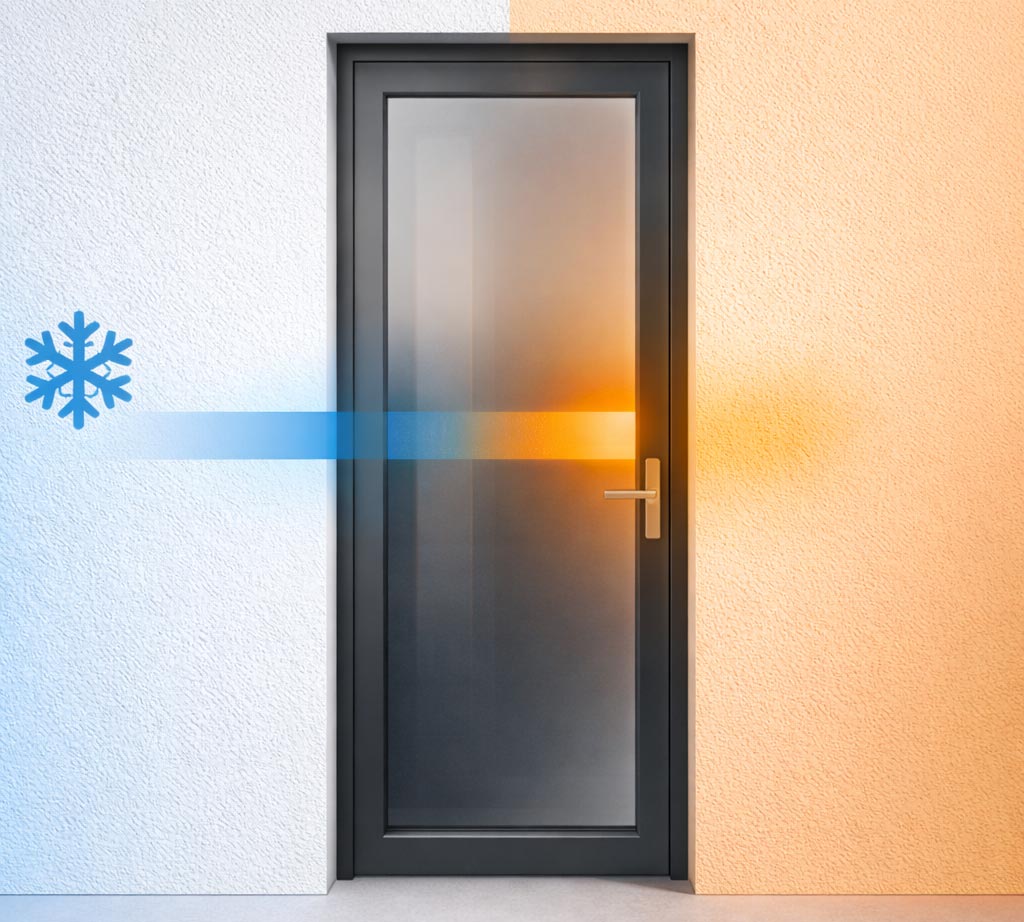

U-factor describes heat transfer through an assembly; lower values indicate less heat transfer when compared on the same basis. A center-of-glass number or a slab-only figure does not describe the whole installed opening. Ask what was measured, which configuration it covers and whether the units match.
Reference: U.S. Department of Energy guidance on door U-factor and the frame.
Use the R-value and U-factor guide to keep the terms straight. A material R-value cannot simply be treated as the rating for a complete door with glass, framing and joints.
Ask for the relevant NFRC certification or other accepted project documentation when required. The NFRC directory can help verify a certified product; the presence of a thermal break alone is not proof of certification.
Reference: NFRC Certified Products Directory.
A thermal break does not solve every source of discomfort
Air moving around a worn seal is different from heat conducted through metal. Strong sun through glass is another issue. Compare weatherstripping, glazing, solar heat gain and installation details along with the frame. A good frame cannot compensate for an opening that is poorly sealed.

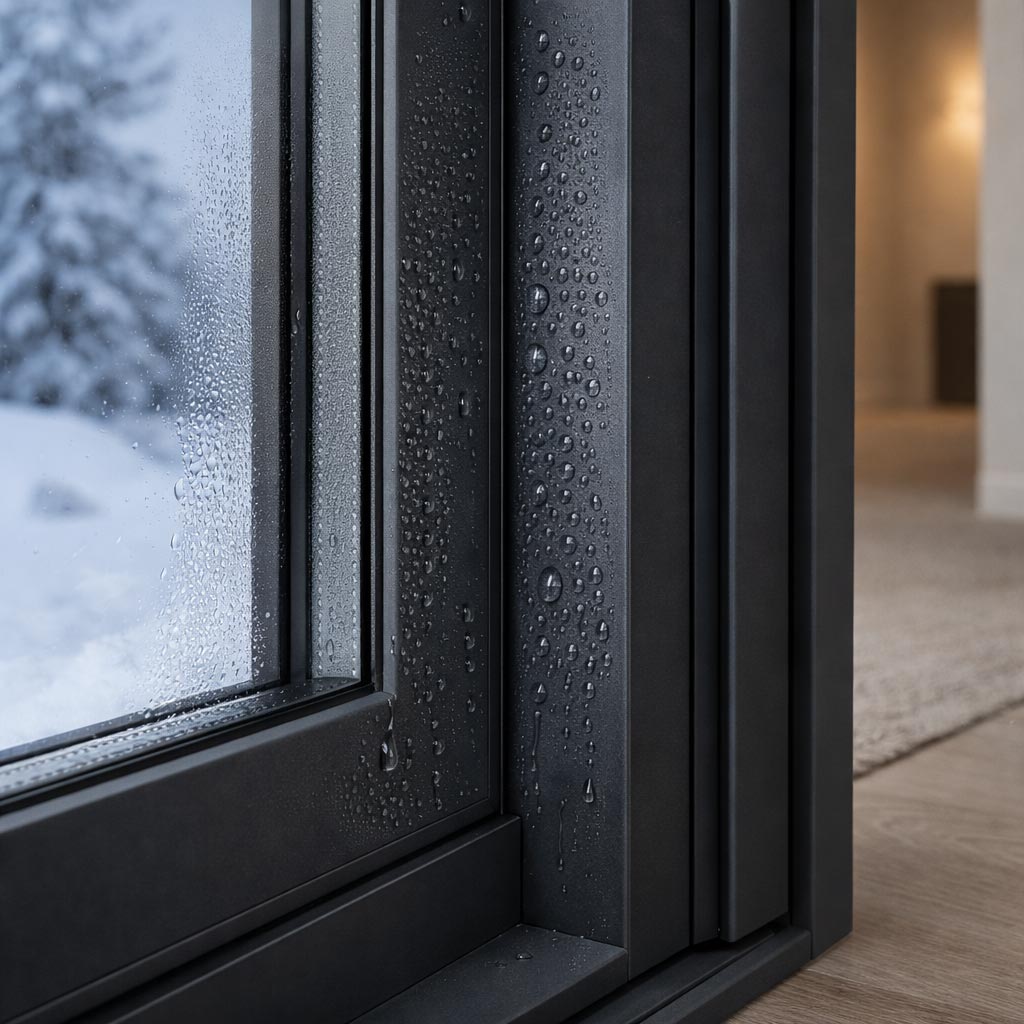

Condensation is also a moisture question. It can form when a surface is cold enough relative to the indoor air’s moisture content. Avoid promises that a thermal break will eliminate it in every climate or room. Ask the design team to evaluate the actual indoor and outdoor conditions.
Compare quotes without inventing a universal price gap
| Match this detail | Record it on each proposal |
|---|---|
| Size and operation | Overall dimensions, one or two leaves, swing or pivot. |
| Frame and panel | Material, profile and thermal-break construction. |
| Glass | Glazing build-up, coating, appearance and verified ratings. |
| Hardware and sealing | Lock preparation, hinges, threshold and weatherstripping. |
| Delivery and installation | Freight, site work, lead time and what the quoted price excludes. |
Browse thermally broken doors for the current collection. Request a quote for the exact opening rather than relying on a generic cost range. The right choice comes from the required performance, design and complete installed cost.
